100L SUS304 Stainless Steel Bacteria Culture & Fermentation Tank
FAST Shipping All Over The World
We provide worldwide DDP sea shipping, including customs clearance and delivery to your address.
30 Day Money Back Guarantee
If the goods you receive do not match the agreed specifications, you can request a refund within 30 days.
1000+ Happy Customers
Our livestock machinery has been purchased and used by customers in different countries with positive feedback.
On-site Installation By An Engineer
We can arrange technicians or workers to provide on-site installation and commissioning support when required.
Why choose us?
- Worldwide DDP Delivery
- 24/7 Customer Service
- Secure Payment

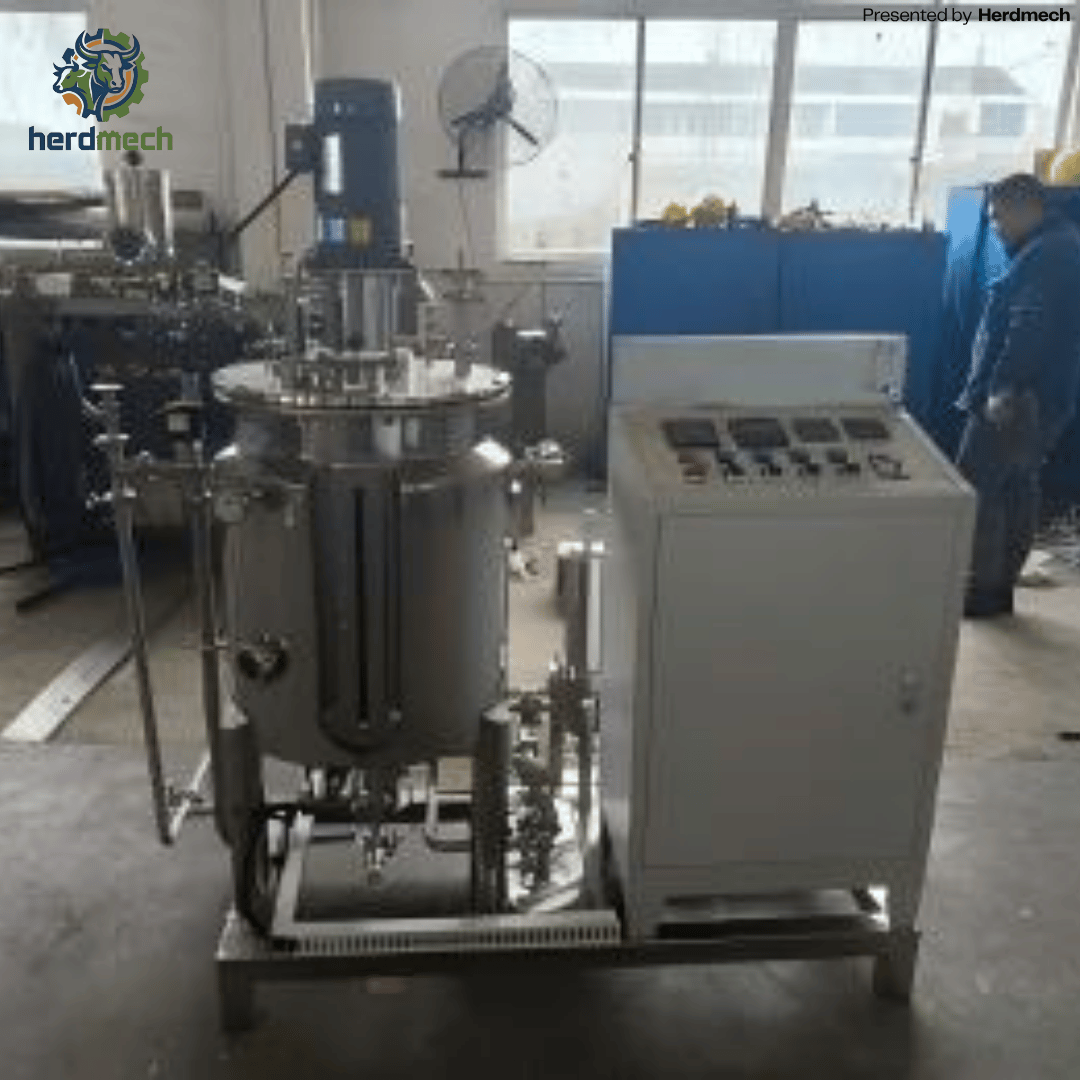

The Herdmech 100L Bacteria Culture Tank is a professional-grade bioreactor designed for the precise cultivation of agricultural inoculants and bacteria. Manufactured strictly according to the NBT47003.1-2009 standard, this tank features a dual-layer SUS304 stainless steel structure with highly polished interior and exterior walls.

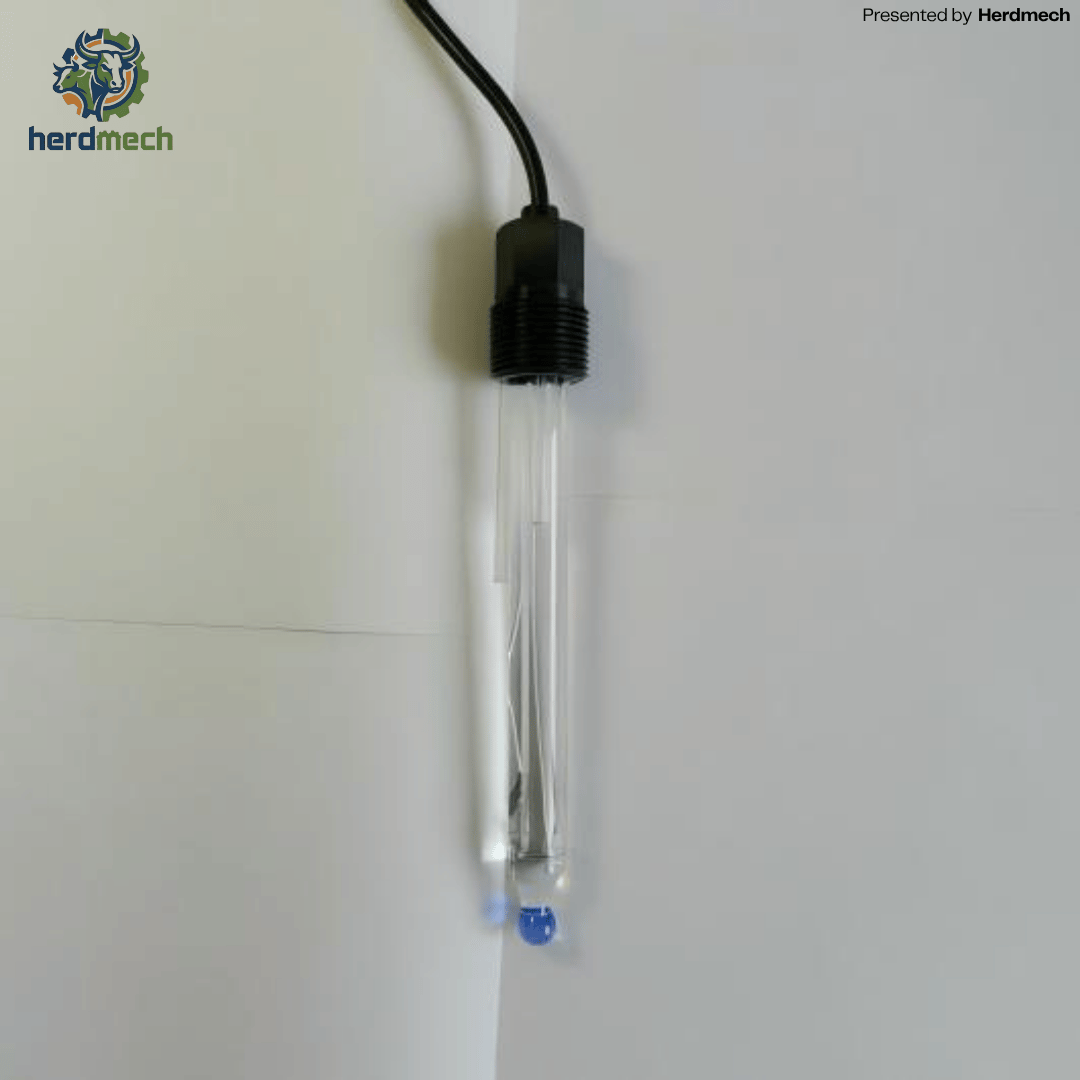

The integrated electrical control panel allows for real-time monitoring and automation of critical fermentation parameters, including variable frequency agitation, online pH monitoring, and constant temperature control via a 3kW electric heating system.
Technical Specifications:
Volume & Dimensions: 100L nominal volume (0.8 loading coefficient), cylinder inner diameter Ø450x600mm, total equipment height approx. 1.7m, weight approx. 200kg
Material: SUS304 Stainless Steel (3mm inner tank, 3mm jacket) with silicone sealing
Agitation System: 0.75 kW vertical motor with gear reducer, VFD speed control (0~120 rpm), featuring upper paddle and lower fishtail agitators
Heating & Control: 3kW electric heating for constant temperature incubation with PT100 temperature control
Control Panel Features: Carbon steel spray-coated shell with standard bottom wiring; handles temperature display/control, variable speed agitation, online pH display, and heating control
Ports & Fittings: Inoculation port, feeding port, breathing port, sight glass (top); jacket water inlet, exhaust port, pH meter port (side); discharge port, thermometer port, blowdown port (bottom)
Included Systems: 304 stainless steel piping system and a spray system equipped with a 1.1 kW self-priming pump
Specifications & Models
Detailed Specifications of Stationary TMR Mixers
| Model | Maximum Feeding Height (mm) | Maximum Feeding Width (mm) | Dimensions (mm) | Feeding Power Type | Conveyor Chain Speed (m/s) | Conveyor Chain | Equipment Weight (kg) |
| 9QQ-1600 | 5500 | 1600 | 5750 × 1820 × 3950 | Hydraulic | 0.35 | 24A Chain | 2400 |
