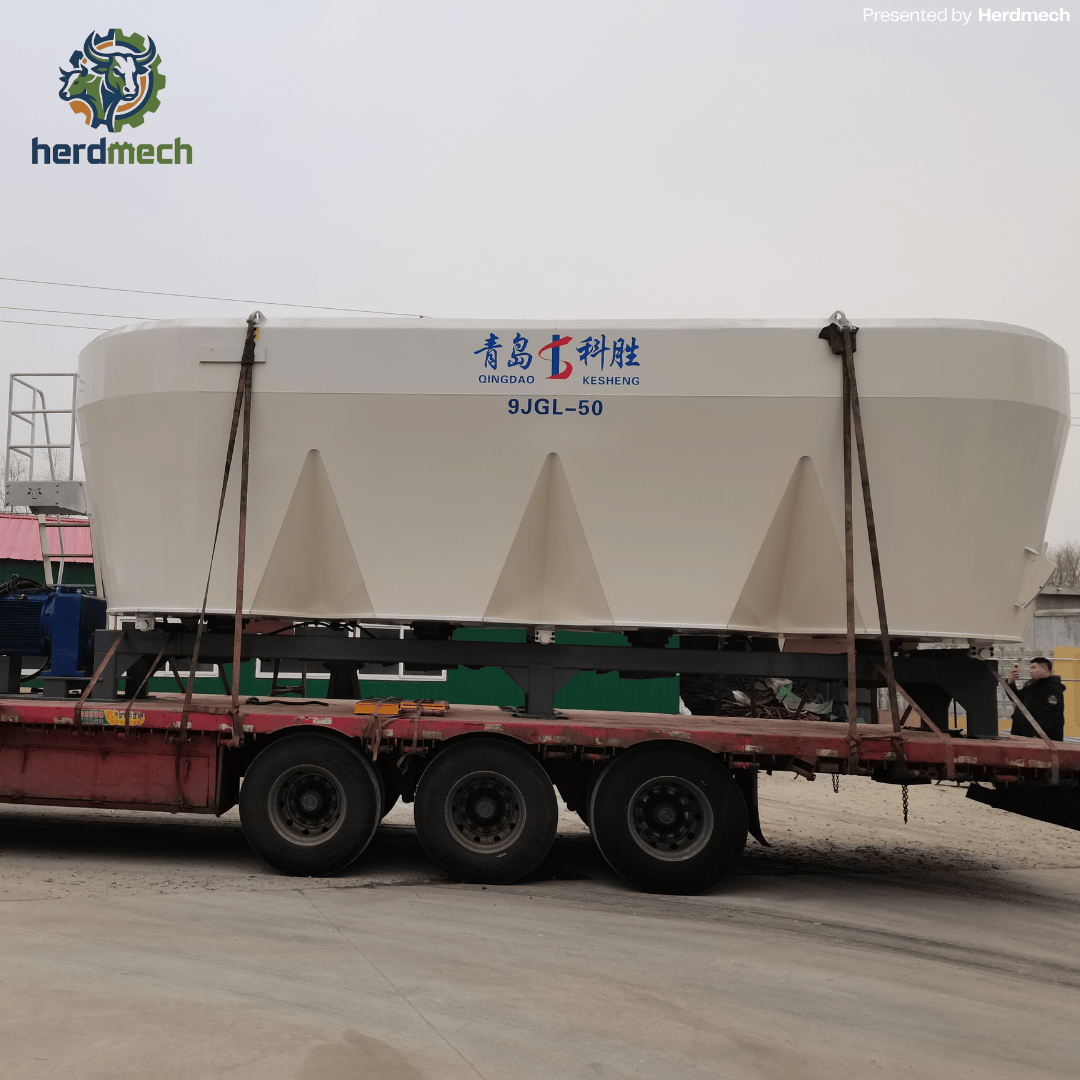

50CBM Stationary TMR Mixing Station (Model: 9JGL-50)
FAST Shipping All Over The World
We provide worldwide DDP sea shipping, including customs clearance and delivery to your address.
30 Day Money Back Guarantee
If the goods you receive do not match the agreed specifications, you can request a refund within 30 days.
1000+ Happy Customers
Our livestock machinery has been purchased and used by customers in different countries with positive feedback.
On-site Installation By An Engineer
We can arrange technicians or workers to provide on-site installation and commissioning support when required.
Why choose us?
- Worldwide DDP Delivery
- 24/7 Customer Service
- Secure Payment
Ultimate Capacity: Quad-Auger Powerhouse for Mega-Dairies
The 9JGL-50 Stationary TMR Feed Mixer is the pinnacle of high-capacity feed processing, engineered exclusively for the largest mega-dairies and commercial feedlots. Delivering an unprecedented 50-cubic-meter mixing capacity, this titan utilizes a state-of-the-art quad-auger system to process monumental feed volumes with ease. It embodies the stationary line's core advantages of low energy consumption and durability, driven by a formidable 185kW motor equipped with Variable-Frequency Drive (VFD) technology.
Key Performance Features
Ultra-Durable Chamber Construction: Engineered to withstand an extreme daily workload, the 9JGL-50 features a massive 20mm thick bottom plate and 8+8mm double-layered wear-resistant side plates.
Precision Cutting System: Equipped with an impressive 32 specialized cutting blades. Each 8mm thick blade is forged from premium 65Mn steel and treated with a heat and tungsten carbide coating process to maintain a razor-sharp, highly wear-resistant edge.
Optimized Quad-Auger Design: The heart of the 9JGL-50 features four powerful augers utilizing 14mm + 8mm dual-layer blades for extreme wear resistance. This optimized design lifts more material for a fluffy, dead-zone-free mix, performing exceptionally well even in massive batches.
Smart Control with Soft-Start VFD: Powered by a heavy-duty 185kW motor integrated with a renowned-brand Variable-Frequency Drive (VFD). This enables a soft start to protect the motor and allows for a spin-off cleaning function for leftover feed. The high-torque reducer is sourced from world-class brands like Comer, Jiangling.
Advanced Load Sensing: Upgraded for massive loads, this model utilizes an ultra-stable 6-sensor setup with a sensitive and stable electronic dynamic weighing system. The clear display ensures exact ingredient control and customizable quantitative warnings for optimal herd nutrition.
Operator Safety & Convenience: Features a wide platform design with non-slip ladders and handrails to effectively increase operator safety and convenience.
Specifications & Models
Detailed Specifications of Stationary TMR Mixers
| Model | Dimensions (mm) | Motor Power (kW) | Auger Quantity | Blade Quantity | Load Cells | Auger Reducer | Total Weight |
| 9JGL-06 | 2950x 2450x2580 | 15 (Direct Start) | 1 | 8 | 3 | Comer / Jiangling | 2400 |
| 9JGL-08 | 3270x 2780x2550 | 22 (Direct Start) | 1 | 8 | 3 | Comer / Jiangling | 2800 |
| 9JGL-10 | 3320x 2780x2880 | 30 (Direct Start) | 1 | 8 | 3 | Comer / Jiangling | 3460 |
| 9JGL-12 | 3550x 2980x2950 | 37 (Variable Frequency) | 1 | 10 | 3 | Comer / Jiangling | 4080 |
| 9JGL-14 | 3550x 2920x3240 | 45 (Variable Frequency) | 1 | 10 | 3 | Comer / Jiangling | 4200 |
| 9JGL-16 | 4750x 2550x3000 | 55 (Variable Frequency) | 2 | 16 | 4 | Comer / Jiangling | 5430 |
| 9JGL-20 | 5400x 2870x2910 | 75 (Variable Frequency) | 2 | 16 | 4 | Comer / Jiangling | 6540 |
| 9JGL-25 | 5400x 2850x3050 | 75 (Variable Frequency) | 2 | 16 | 4 | Comer / Jiangling | 6830 |
| 9JGL-30 | 6100x 3000x3350 | 110 (Variable Frequency) | 2 | 20 | 4 | Comer / Jiangling | 8200 |
| 9JGL-36 | 8000x 3000x3000 | 132 (Variable Frequency) | 3 | 30 | 6 | Comer / Jiangling | 8400 |
| 9JGL-40 | 8100x 3000x3200 | 160 (Variable Frequency) | 3 | 30 | 6 | Comer / Jiangling | 9200 |
| 9JGL-50 | 9600x 3000x3200 | 185 (Variable Frequency) | 4 | 32 | 6 | Comer / Jiangling | 13000 |
